Plastic granulators

Easy Power

Bruno Folcieri is your Partner in Plastic Waste Size Reduction

Download Brochure

3D View

HIGHLIGHTS

  • the best in heavy construction with great cutting power
  • suitable for intensive and high-capacity operations
  • quality and reliability
  • high productivity
  • long-term durability
  • highly robust
  • oversized mechanics
  • parts most exposed to wear and tear easily replaceable
  • constructed with top-quality materials and 100% made in italy
  • high safety standards
  • custom-made configuration
  • extremely easy maintenance with reduced downtime

Easy Power

Easy Power

Plastic granulators
Easy Power

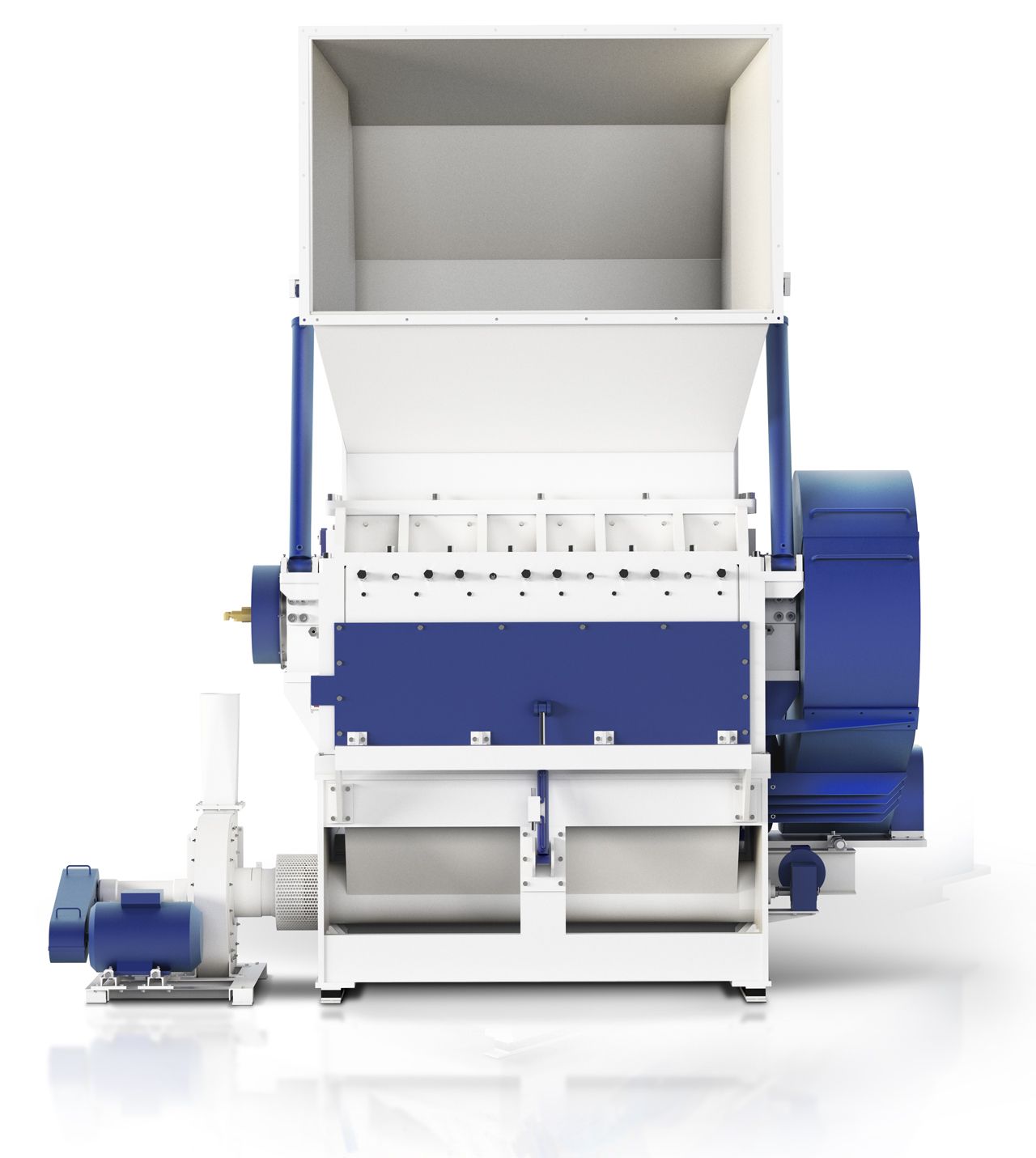

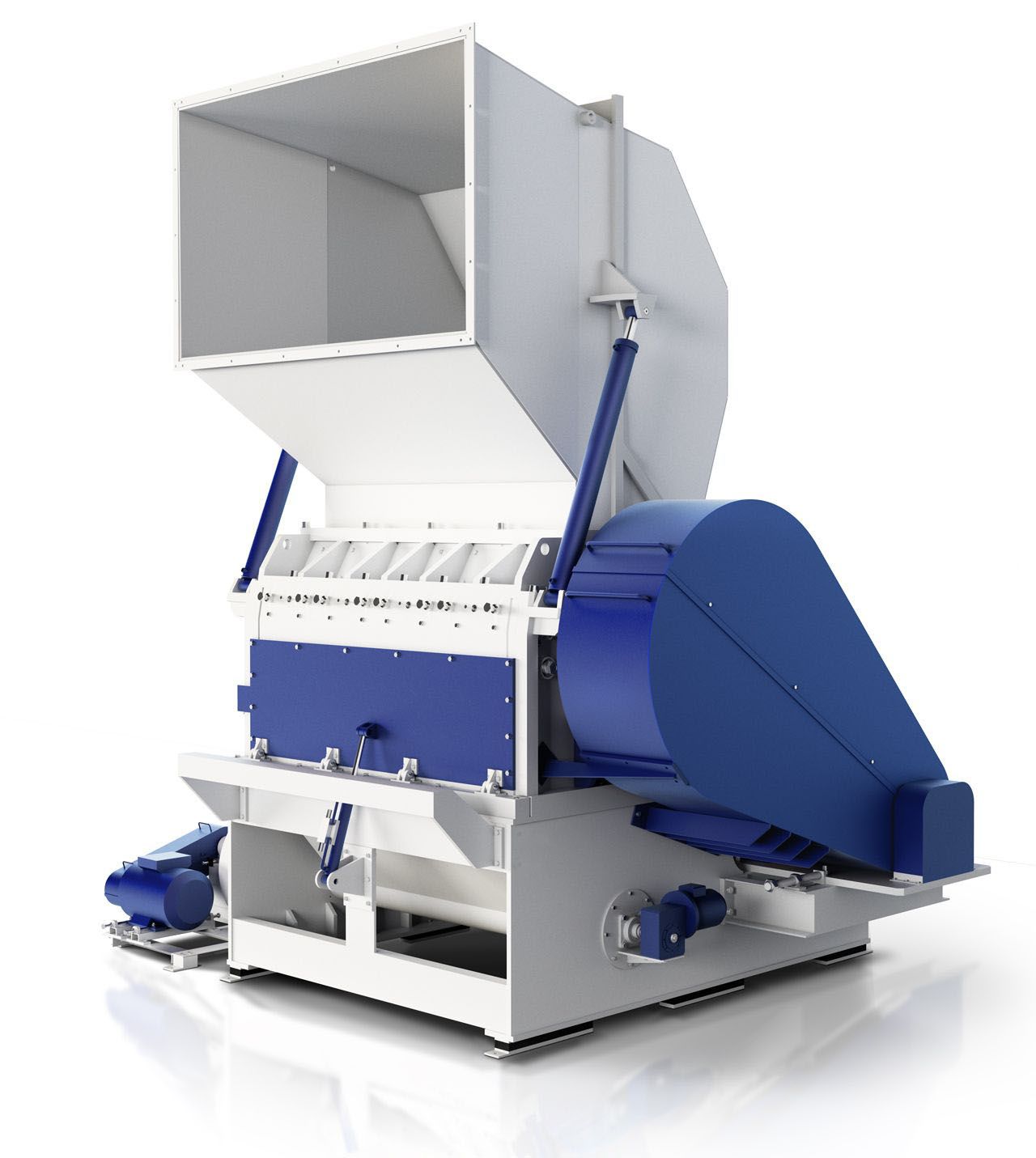

The EASY POWER is the largest capacity granulator built for the most rigorous conditions. It is suitable for tough, abrasive or contaminated materials that can cause high wear. The major feature is the heavy steel construction and the rotor, made from a solid block of hardened steel forged without any welding, as proof of extreme solidity, strength and resistance. Most machine components are interchangeable, such as the rotor blade holders, blade locking wedges and wear-resistant steel protection plates of the cutting chamber, which ensures maximum machine efficiency and duration over time. In addition, the complete opening of the feed hopper and special conformation of the cutting chamber allow for easy access to the heart of the machine, for maintenance purposes.
Also available in the EASY POWER WET.


PLASTIC GRANULATOR MODELS EASY POWER
Download: Brochure EASY POWER
i
i
i
i
i
i
i
i
i
i
i

available industry package 4.0

bruno folcieri is actively involved in the 4.0 industry, with systems that make the machines “intelligent communicating entities”, even when working remotely. integrated with the it and itc worlds, the remote assistance service allows changes to be made to the configuration of the control system, through a company tpc/ip network connection and an internet connection.

TECHNICAL SPECIFICATIONS

Model
Description
mm
mm
mm
mm
n°
n°
mm
rpm
kw
ø p
ø p
[t]
E200909 E2000X920X930 5000 3400 3500 2000x920 5÷6 2 930 305 160÷315 1410 290 32
E200509 E2000X500X930 5000 3400 3500 2000x500 5÷6 2 930 305 160÷315 1410 290 30
E200808 E2000X820X830 5000 3400 3500 2000x820 5÷6 2 830 305 160÷315 1410 290 27
E200508 E2000X500X830 5000 3400 3500 2000x500 5÷6 2 830 305 160÷315 1410 290 25
E150909 E1500X920X930 5000 2900 3300 1500x920 5÷6 2 930 305 132÷250 1410 290 25
E150808 E1500X820X830 5000 2900 3300 1500x820 5÷6 2 830 305 132÷250 1410 290 20
E150509 E1500X500X930 5000 2900 3300 1500x500 5÷6 2 930 305 132÷250 1410 290 23
E150508 E1500X500X830 5000 2900 3300 1500x500 5÷6 2 830 305 132÷250 1410 290 18
E120808 E1200X820X830 5000 2600 3300 1200x820 5÷6 2 830 388 132÷200 1110 290 16
E120508 E1200X500X830 5000 2900 3300 1200x500 5÷6 2 830 388 132÷200 1110 290 15

ADVANTAGES

extremely easy maintenance
  • cutting chamber opens completely for quick and safe access to rotor and counter-blades
  • feeding hopper, cutting chamber inspection compartment and screen holder open and close hydraulically and automatically
  • hoist for screen removal
  • open hopper safety arm
  • rotor anti-rotation safety brake
  • blades pre-adjustment by special jig
wear resistance
  • considerably heavy
  • cutting chamber entirely coated with replaceable wear-resistant steel plates
  • most components subject to wear are replaceable
  • external bearing supports provided with labyrinth seal
high yields
  • screen featuring upper exhaust area
  • 1,400 mm diam. pulley (2.8 tonnes) with higher cutting torque for greater cutting strength stabilising rotation speed

Pusher for bulky materials

Conveyor belt

fan for ground transport

made of heavy carpentry with parts subject to greater wear in wear-resistant steel


dry material unloading screw

metal detector

soundproofing cabin
ITALIAN
QUALITY
since 1946
